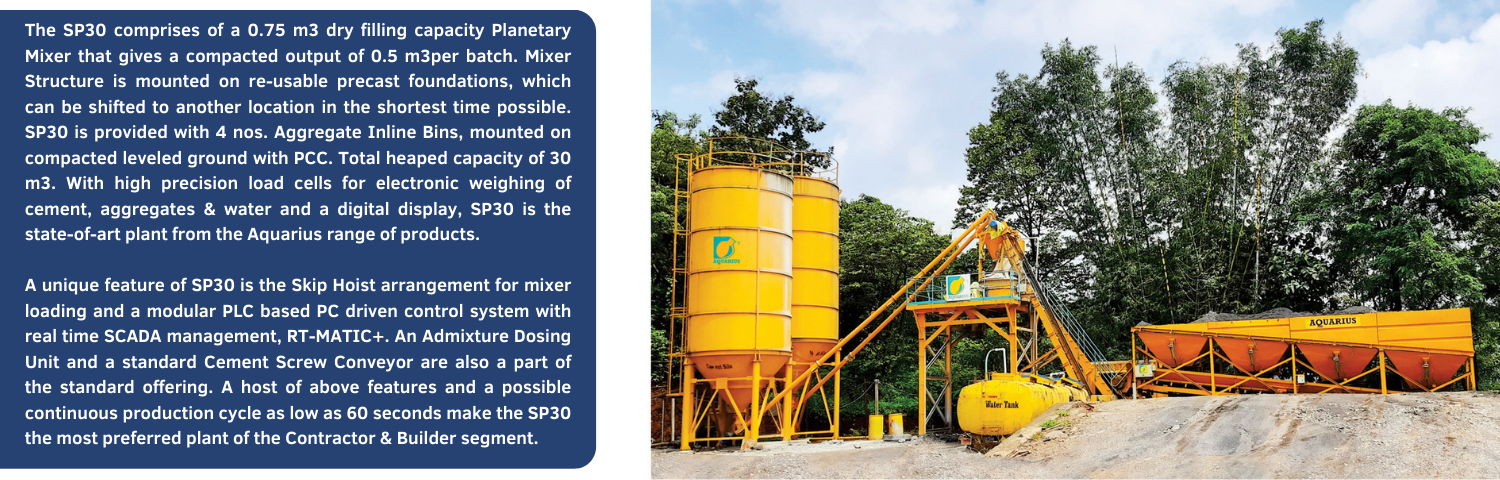

STATIONARY BATCHING PLANT – SP 30
TECHNICAL SPECIFICATION STATIONARY BATCHING PLANT – SP 30
|
Model Specifications |
|
Unit |
SP 30 |
|
Type
of Mixer |
|
– |
Planetary |
|
Capacity
of Mixer |
|
L |
750 |
|
Compacted
Output per Batch |
|
L |
500 |
|
No.
of Aggregates |
|
No. |
4 |
|
Storage
Capacity of Aggregate |
|
m3 |
30 |
|
No.
of Cement / Fly Ash (Max)# |
|
No. |
3 |
|
No.
of Water |
|
No. |
2 |
|
No.
of Additives |
|
No. |
2 |
|
Aggregate
Loading in Mixer |
|
– |
Skip
Hoist/Belt |
|
Aggregate
Loading Height |
|
m |
3.6 |
|
Connected
Load# |
|
kW |
50.69 |
|
D.G.
Set Required |
|
kVA |
80 |

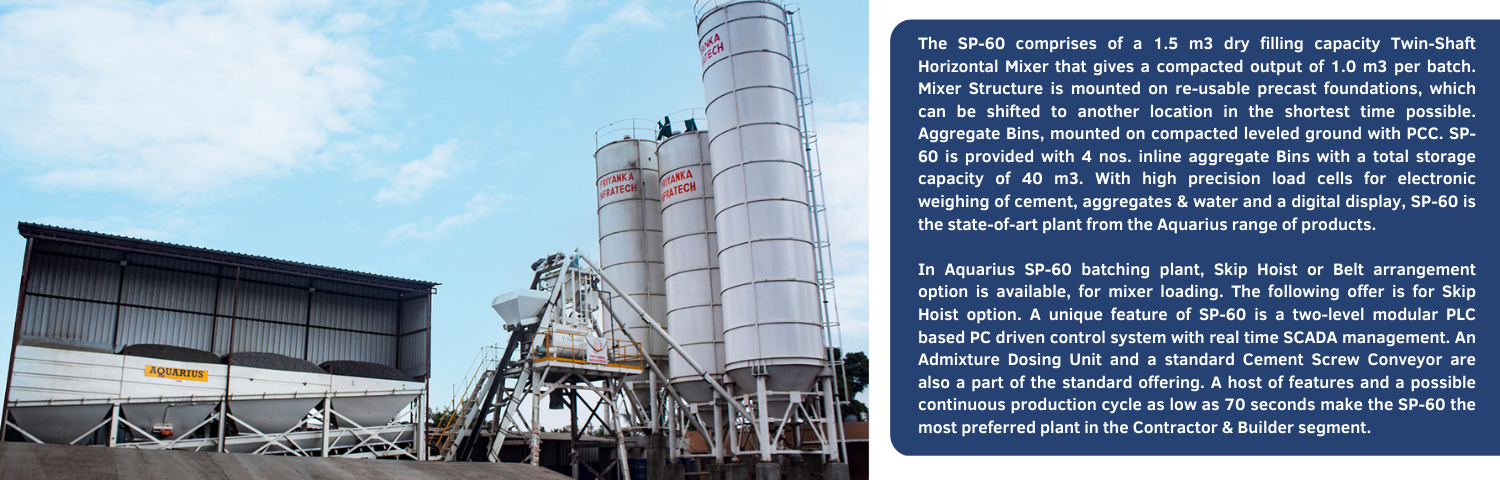

STATIONARY BATCHING PLANT – SP 60
TECHNICAL SPECIFICATION STATIONARY BATCHING PLANT – SP 60
|
Model Specifications |
Unit |
SP 60 |
|
|
Type
of Mixer |
– |
Twin
Shaft |
|
|
Capacity
of Mixer |
L |
1500 |
|
|
Compacted
Output per Batch |
L |
1000 |
|
|
No.
of Aggregates |
No. |
4/5/6 |
|
|
Storage
Capacity of Aggregate |
m3 |
40
to 240 |
|
|
No.
of Cement / Fly Ash (Max)# |
No. |
4 |
|
|
No.
of Water |
No. |
2 |
|
|
No.
of Additives |
No. |
3 |
|
|
Aggregate
Loading in Mixer |
– |
Skip
Hoist/Belt |
|
|
Aggregate
Loading Height |
m |
3.9 |
|
|
Connected
Load# |
kW |
88 |
|
|
D.G.
Set Required |
kVA |
140 |
STATIONARY BATCHING PLANT – SP 70
TECHNICAL SPECIFICATION STATIONARY BATCHING PLANT – SP 70
|
Model Specifications |
Unit |
SP 70 |
|
|
Type of Mixer |
– |
Twin Shaft |
|
|
Capacity of Mixer |
L |
1870 |
|
|
Compacted Output per Batch |
L |
1250 |
|
|
No. of Aggregates |
No. |
4/5/6 |
|
|
Storage Capacity of Aggregate |
m3 |
70 to 240 |
|
|
No. of Cement / Fly Ash (Max)# |
No. |
4 |
|
|
No. of Water |
No. |
2 |
|
|
No. of Additives |
No. |
3 |
|
|
Aggregate Loading in Mixer |
– |
Skip Hoist/Belt |
|
|
Aggregate Loading Height |
m |
3.9 |
|
|
Connected Load# |
kW |
95 |
|
|
D.G. Set Required |
kVA |
140 |
STATIONARY BATCHING PLANT – SP 90
TECHNICAL SPECIFICATION STATIONARY BATCHING PLANT – SP 90
|
Model Specifications |
Unit |
SP 90 |
|
|
Type of Mixer |
– |
Twin Shaft |
|
|
Capacity of Mixer |
L |
3000 |
|
|
Compacted Output per Batch |
L |
2000 |
|
|
No. of Aggregates |
No. |
4/5/6 |
|
|
Storage Capacity of Aggregate |
m3 |
70 to 240 |
|
|
No. of Cement / Fly Ash (Max)# |
No. |
4 |
|
|
No. of Water |
No. |
2 |
|
|
No. of Additives |
No. |
3 |
|
|
Aggregate Loading in Mixer |
– |
Skip Hoist/Belt |
|
|
Aggregate Loading Height |
m |
5 |
|
|
Connected Load# |
kW |
143.47 |
|
|
D.G. Set Required |
kVA |
250 |
STATIONARY BATCHING PLANT – SP 120
TECHNICAL SPECIFICATION STATIONARY BATCHING PLANT – SP 120
|
Model Specifications |
Unit |
SP 120 |
|
|
Type of Mixer |
– |
Twin Shaft |
|
|
Capacity of Mixer |
L |
4500 |
|
|
Compacted Output per Batch |
L |
3000 |
|
|
No. of Aggregates |
No. |
4/5/6 |
|
|
Storage Capacity of Aggregate |
m3 |
70 to 240 |
|
|
No. of Cement / Fly Ash (Max)# |
No. |
4 |
|
|
No. of Water |
No. |
2 |
|
|
No. of Additives |
No. |
3 |
|
|
Aggregate Loading in Mixer |
– |
Conveyor Belt |
|
|
Aggregate Loading Height |
m |
5.5 |
|
|
Connected Load# |
kW |
223.47 |
|
|
D.G. Set Required |
kVA |
320 |
