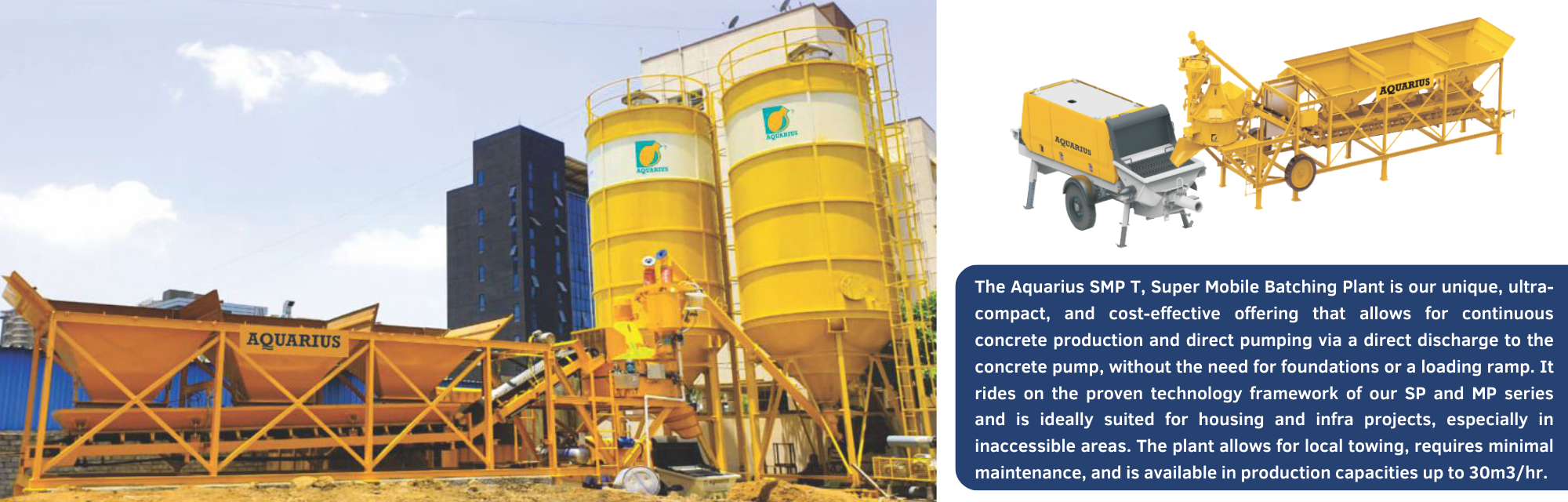

SUPER MOBILE BATCHING PLANT
TECHNICAL SPECIFICATION SUPER MOBILE BATCHING PLANT
|
Model
Specifications |
Unit |
SMP T 21 |
SMP T 30 |
|
Type of Mixer |
– |
Planetary |
Planetary |
|
Dry Fill
Capacity of Mixer |
L |
525 |
750 |
|
Compacted Output per Batch |
L |
350 |
500 |
|
No. of
Aggregates |
No. |
max. 3 |
max. 3 |
|
Storage Capacity of Aggregate |
m3 |
18 |
15 |
|
No. of
Cement / Fly Ash (Max)# |
No. |
max. 3 |
max. 3 |
|
No. of Water |
No. |
max.
2 |
max.
2 |
|
No. of
Additives |
No. |
max. 1 |
max. 1 |
|
Aggregate Loading in Mixer |
– |
Belt
conveyor |
Belt
conveyor |
|
Connected
Load# |
kW |
28 |
35 |
|
Aggregate Loading Height |
m |
3 |
3 |
|
D.G. Set
Required |
kVA |
50 |
62.5 |

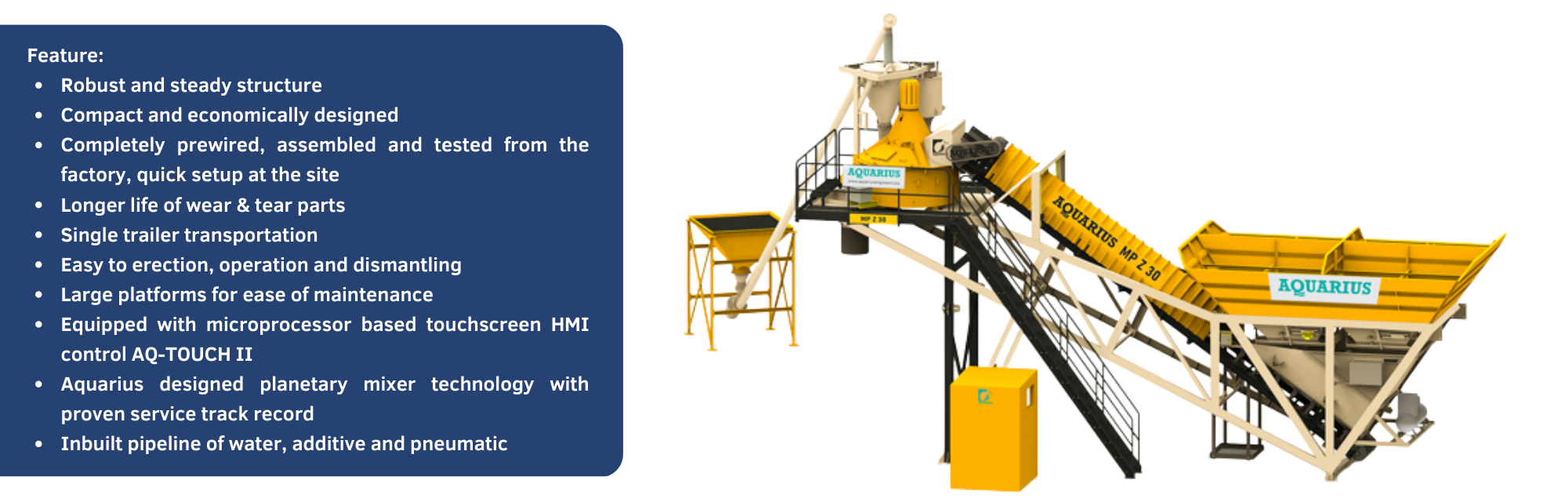

COMPACT BATCHING PLANT – MP Z 30
TECHNICAL SPECIFICATION COMPACT BATCHING PLANT – MP Z 30
|
Model
Specifications |
Unit |
MP Z 30 |
|
|
Type of Mixer |
– |
Planetary |
|
|
Dry Fill Capacity of Mixer |
L |
750 |
|
|
Compacted Output per Batch |
L |
500 |
|
|
No. of Aggregates |
No. |
4 |
|
|
Storage Capacity of Aggregate |
m3 |
20 |
|
|
No. of Cement / Fly Ash (Max)# |
No. |
3 |
|
|
No. of Water |
No. |
1 |
|
|
No. of Additives |
No. |
2 |
|
|
Aggregate Loading in Mixer |
– |
Cleated
Belt |
|
|
Connected Load# |
kW |
3.98 |
|
|
Aggregate Loading Height |
m |
50 |
|
|
D.G. Set Required |
kVA |
82.5 |
|
|
Concrete discharge height |
m |
4.1 |

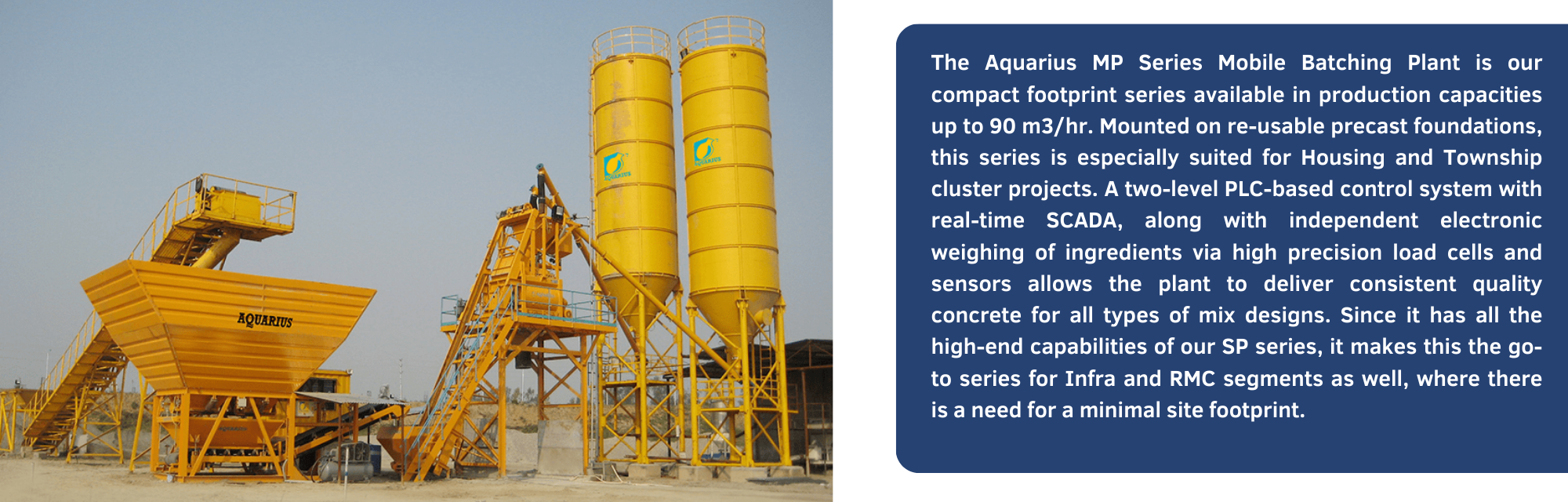

MOBILE BATCHING PLANT – MP 60
TECHNICAL SPECIFICATION MOBILE BATCHING PLANT – MP 60
|
Model Specifications |
Unit |
MP 60 |
|
|
Type of
Mixer |
– |
Twin
Shaft |
|
|
Capacity
of Mixer |
L |
1500 |
|
|
Compacted
Output per Batch |
L |
1000 |
|
|
No. of
Aggregates |
No. |
4 |
|
|
Storage
Capacity of Aggregate |
m3 |
50 |
|
|
No. of
Cement / Fly Ash (Max)# |
No. |
4 |
|
|
No. of
Water |
No. |
2 |
|
|
No. of
Additives |
No. |
3 |
|
|
Aggregate
Loading in Mixer |
– |
Skip |
|
|
Connected
Load# |
kW |
78.67 |
|
|
Aggregate
Loading Height |
m |
5.1 |
|
|
D.G. Set
Required |
kVA |
160 |
