Parameters

Unit

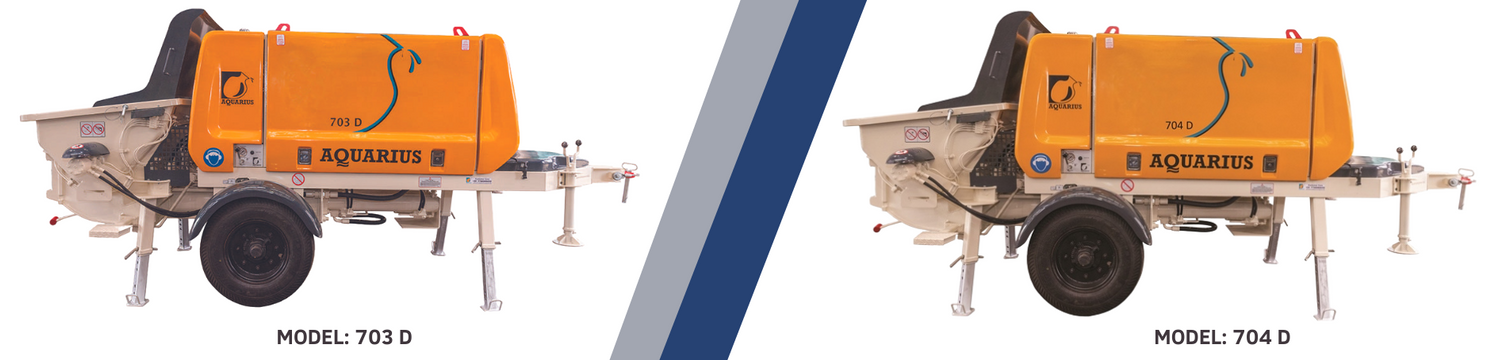

703 D

704 D

Diesel

Diesel

Prime Mover

kW

34.6

49

Theoretical Output

m3/hr

30

35

Del. Cylinder Diameter

mm

200

200

Del. Cylinder Stroke

mm

700

700

No. of Strokes

per min

22.5

26

Hydraulic Transmission

1:3.3

1:3.3

Concrete Pressure

bar

65

80

Concrete Hopper Capacity

L

500

500

Delivery Distance**

Horizontal (m)
Vertical (m)

320
80

350
90

Parameters

Unit

1004 D SHP

1405 D

Diesel Drive

Prime Mover

kW

49

49

Theoretical Output

m3/hr

51 / 35*

51 / 35*

Del. Cylinder Diameter

mm

200

200

Del. Cylinder Stroke

mm

1000

1400

No. of Strokes

per min

27 / 18*

19 / 13*

Hydraulic Transmission

1:4.9

1:3.3

1:4.9

1:3.3

Concrete Pressure

bar

61 / 91*

61 / 91*

Concrete Hopper Capacity

L

500

600

Delivery Distance**

Horizontal (m)
Vertical (m)

400
100

500
125

Parameters

Unit

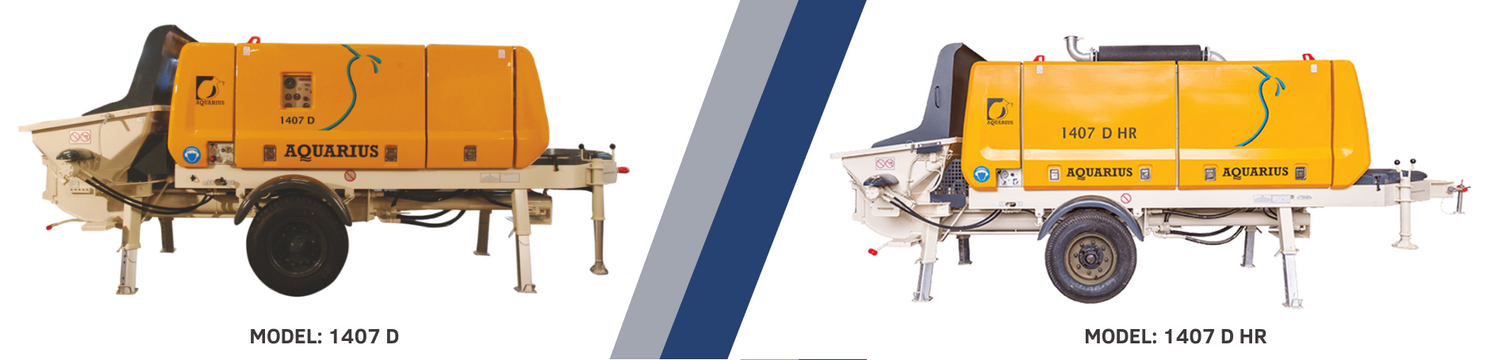

1407 D

1407 D HR

Diesel Drive

Diesel Drive

Prime Mover

kW

82

132

Theoretical Output

m3/hr

65 / 45*

65/45*

Del. Cylinder Diameter

mm

200

200

Del. Cylinder Stroke

mm

1400

1400

No. of Strokes

per min

25 / 17*

25/17*

Hydraulic Transmission

1:4.9

1:3.3

1:4.9
1:3.3

Concrete Pressure

bar

71 / 106*

71/106*

Concrete Hopper Capacity

L

600

600

Delivery Distance**

Horizontal (m)
Vertical (m)

600
150

800
200

Parameters

Unit

1400 HPD

1400 HPD+

Diesel

Diesel

Prime Mover

kW

151

195

Theoretical Output

m3/hr

56 / 37*

58 / 39*

Del. Cylinder Diameter

mm

200

200

Del. Cylinder Stroke

mm

1400

1400

No. of Strokes

per min

21 / 14*

22 / 15*

Hydraulic Transmission

1:3.03

1:2.0

1:3.03

1:2.0

Concrete Pressure

bar

108 / 160*

116 / 172*

Concrete Hopper Capacity

L

600

600

Delivery Distance**

Horizontal (m)
Vertical (m)

1100
275

1200
300
