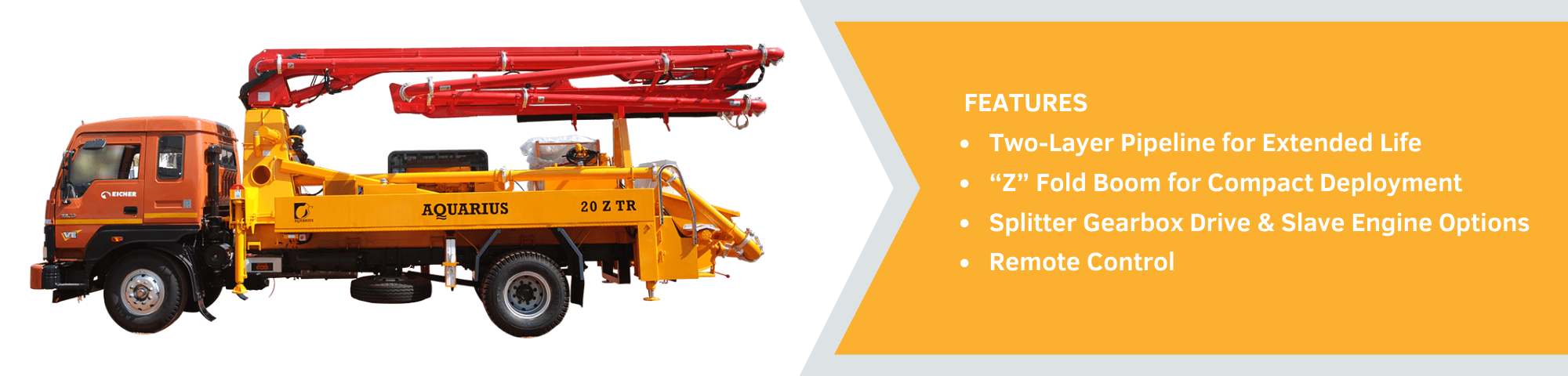

TRUCK MOUNTED BOOM PUMP – M 20.07 Z
TECHNICAL SPECIFICATION TRUCK MOUNTED BOOM PUMP – M 20.07 Z
Parameters | Unit | M 20.07 Z | |
Arms | No. | 3 | |
Boom
Folding | Z | ||
Chassis
Allowable GVW | kg | 16000* | |
Horizontal
Reach (max.) | M | 16.4 | |
Vertical
Reach (max.) | M | 20 | |
Reach
Depth | M | 9.5 | |
Unfolding
Height | M | 5.5 | |
Slewing
Range | Deg | 365 | |
Delivery
Line Diameter | Mm | 125 | |
Length
of End Hose (dn 125) | M | 3 | |
Max.
Hydraulic Pressure | Bar | 300 | |
Electrical
System | V | 24 | |
Power
Drive Slave Engine | kw | 82 |
*New
regulation for two axle chassis (4X2) the GVW is specified as 18500kg
|
CONCRETE
PUMP |
|||
|
Model
Specification |
Unit |
20.07 |
|
|
Concrete
Output Max. Theoretical |
m3/hr |
65 |
|
|
Concrete
Pressure Max. Theoretical |
Bar |
71 |
|
|
No.
of Strokes / Min |
No. |
25 |
|
|
Delivery
Cylinder Diameter |
Mm |
200 |
|
|
Piston
Stroke Length |
Mm |
1400 |
|
|
Hydraulic
Transmission Ratio (rod Side) |
1:4:9 |
||
|
Easy
Clean Hopper Capacity |
L |
600 |
|
|
Water
Tank Capacity |
L |
420 |
Note: Performance
of equipment is based on standard working conditions. Design / Specifications
can be changed without prior notice.

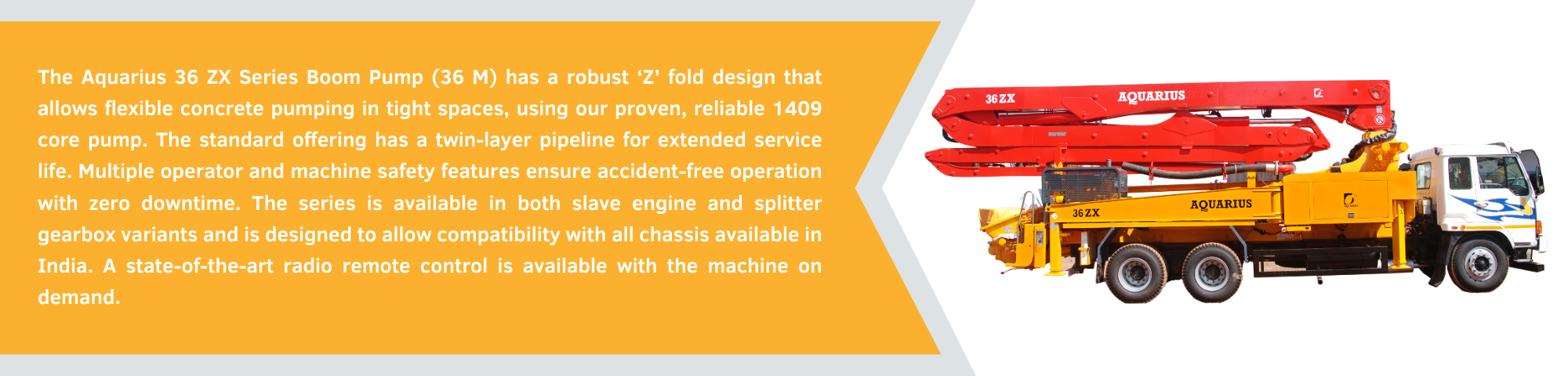

TRUCK MOUNTED BOOM PUMP – M 36.09 Z
TECHNICAL SPECIFICATION TRUCK MOUNTED BOOM PUMP – M 36.09 Z
Parameters | Unit | M 36.09 Z | |
Arms | No. | 4 | |
Boom
Folding | Z | ||
Chassis
Allowable GVW | kg | 25000* | |
Horizontal
Reach (max.) | M | 31.5 | |
Vertical
Reach (max.) | M | 35.5 | |
Reach
Depth | M | 23.4 | |
Unfolding
Height | M | 8.1 | |
Slewing
Range | Deg | 370 | |
Delivery
Line Diameter | Mm | 125 | |
Length
of End Hose (dn 125) | M | 3 | |
Max.
Hydraulic Pressure | Bar | 300 | |
Electrical
System | V | 24 | |
Power
Drive Slave Engine | kw | 82 |
*New
regulation for two axle chassis (6X4) the GVW is specified as 28000kg
|
CONCRETE
PUMP |
|||
|
Model
Specification |
Unit |
36.07 |
|
|
Concrete
Output Max. Theoretical |
m3/hr |
85 |
|
|
Concrete
Pressure Max. Theoretical |
Bar |
54 |
|
|
No.
of Strokes / Min |
No. |
25 |
|
|
Delivery
Cylinder Diameter |
Mm |
230 |
|
|
Piston
Stroke Length |
Mm |
1400 |
|
|
Hydraulic
Transmission Ratio (rod Side) |
1:6:5 |
||
|
Easy
Clean Hopper Capacity |
L |
600 |
|
|
Water
Tank Capacity |
L |
205 |
Note: Performance
of equipment is based on standard working conditions. Design / Specifications
can be changed without prior notice
