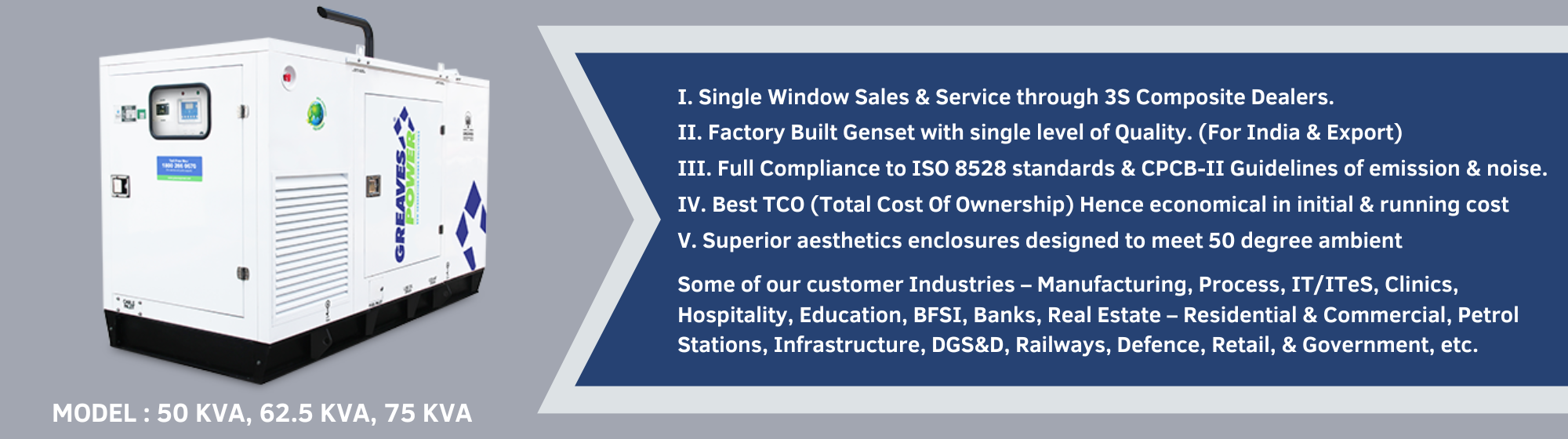

DIESEL GENERATOR 50KVA, 62.5KVA, 75KVA
TECHNICAL SPECIFICATION DIESEL GENERATOR 50KVA, 62.5KVA, 75KVA
|
Genset Model |
GPWII-PII-
50 |
GPWII-PII-
62.5 |
GPWII-PII-
75 |
|
Power Rating (kVA/ kW) |
50 / 40 |
62.5 /
50 |
75 / 60 |
|
No Of Phases |
3 |
3 |
3 |
|
Voltage Range (Volts) |
415 |
415 |
415 |
|
Current in Amps (0.8 PF) |
69.6 |
87 |
104.3 |
|
Engine Power (BHP) |
80.1 |
80.1 |
101.2 |
|
Fuel Consumption at 100 % Load (LPH) |
12.35 |
14.10 |
17.58 |
|
Fuel Consumption at 75 % Load (LPH) |
9.98 |
10.50 |
12.64 |
|
Dimension LxWxH (mm) |
2500 x 1150 x 1535 |
2500 x 1150 x 1535 |
3000 x 1350 x 1540 |
|
Integral Fuel tank capacity (Ltrs) |
150 |
150 |
150 |
|
DG Dry Weight (kg |
1210 |
1230 |
1270 |

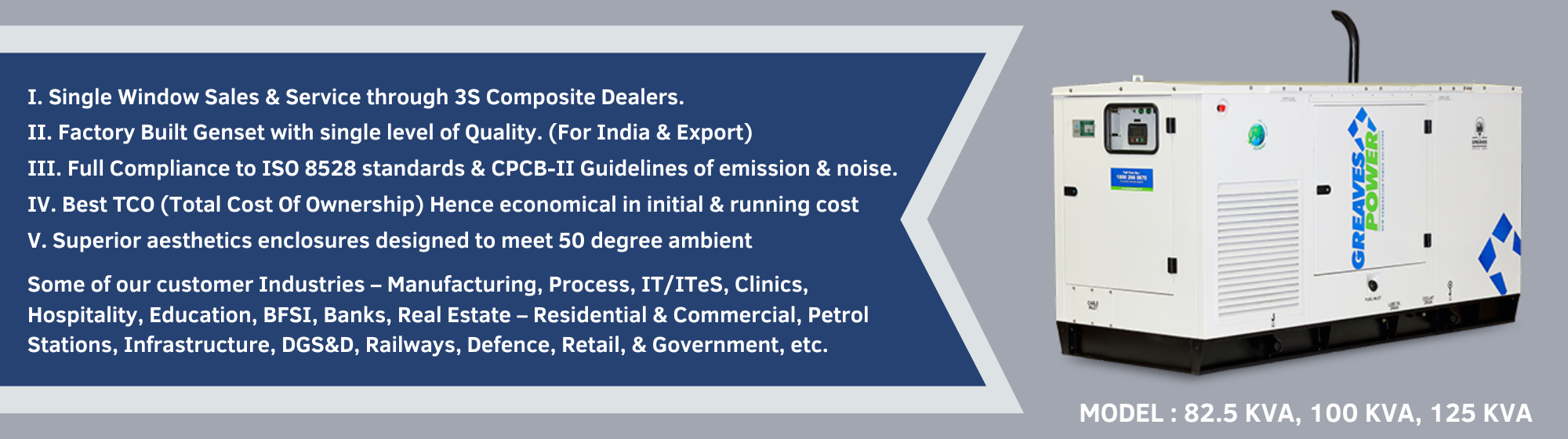

DIESEL GENERATOR 82.5KVA, 100KVA, 125KVA
TECHNICAL SPECIFICATION DIESEL GENERATOR 82.5KVA, 100KVA, 125KVA
|
Genset Model |
GPWII-PII-
82.5 |
GPWII-PII-
100 |
GPWII-PII-
125 |
|
Power Rating (kVA/ kW) |
82.5/66 |
100/80 |
125/100 |
|
No Of Phases |
3 |
3 |
3 |
|
Voltage Range (Volts) |
415 |
415 |
415 |
|
Current in Amps (0.8 PF) |
114.3 |
139.1 |
173.9 |
|
Engine Power (BHP) |
101.2 |
126.5 |
155 |
|
Fuel Consumption at 100 % Load (LPH) |
19.30 |
23.60 |
28.60 |
|
Fuel Consumption at 75 % Load (LPH) |
14.00 |
17.40 |
28.6021.20 |
|
Dimension LxWxH (mm) |
3000 x 1350 x 1540 |
3800 x 1350 x 1884 |
3800 x 1350 x 1884 |
|
Integral Fuel tank capacity (Ltrs) |
150 |
350 |
350 |
|
DG Dry Weight (kg |
1270 |
1600 |
1610 |

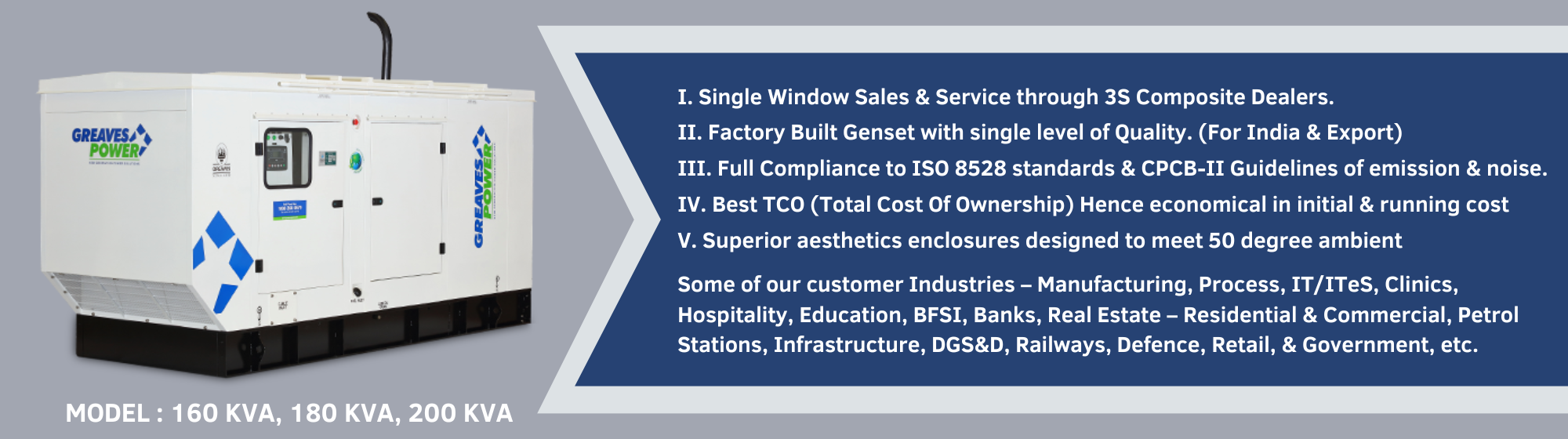

DIESEL GENERATOR 160KVA, 180KVA, 200KVA
TECHNICAL SPECIFICATION DIESEL GENERATOR 160KVA, 180KVA, 200KVA
|
Genset Model |
GPWII-PII-
160 |
GPWII-PII-
180 |
GPWII-PII-
200 |
|
Power Rating (kVA/ kW) |
160/128** |
180/144 |
200/160 |
|
No Of Phases |
3 |
3 |
3 |
|
Voltage Range (Volts) |
415 |
415 |
415 |
|
Current in Amps (0.8 PF) |
222.6 |
250.4 |
278.2 |
|
Engine Power (BHP) |
243.1 |
243.1 |
243.1 |
|
Fuel Consumption at 100 % Load (LPH) |
36.50 |
41.10 |
45.10 |
|
Fuel Consumption at 75 % Load (LPH) |
27.20 |
30.70 |
33.60 |
|
Dimension LxWxH (mm) |
4000 x 1600 x 1900 |
4000 x 1600 x 1900 |
4000 x 1600 x 1900 |
|
Integral Fuel tank capacity (Ltrs) |
360 |
360 |
360 |
|
DG Dry Weight (kg |
2150 |
2295 |
2300 |

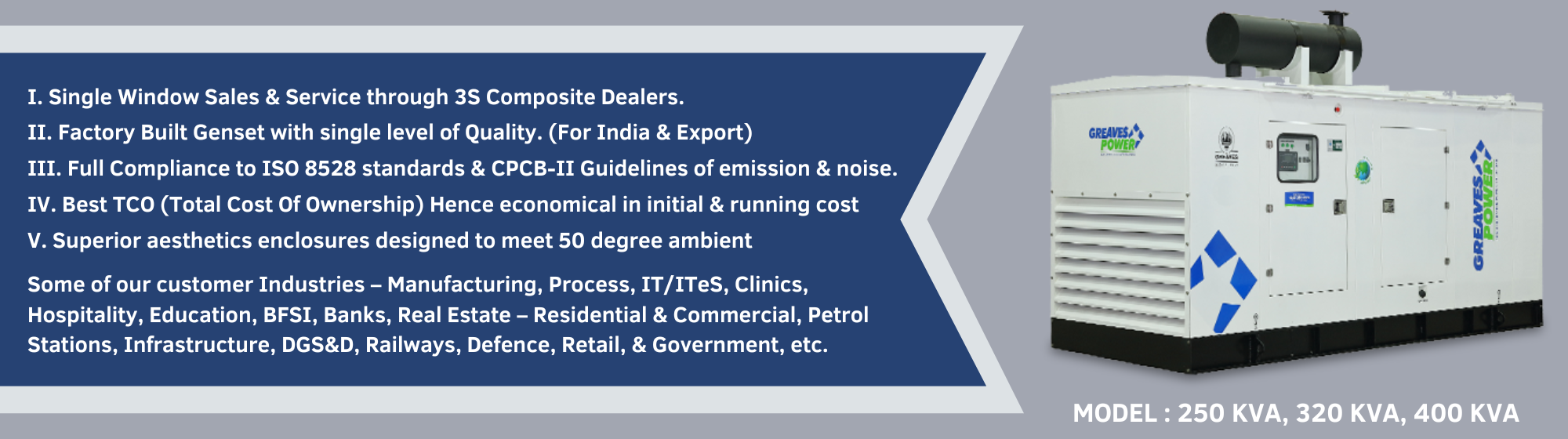

DIESEL GENERATOR 250KVA, 320KVA, 400KVA
TECHNICAL SPECIFICATION DIESEL GENERATOR 250KVA, 320KVA, 400KVA
|
Genset Model |
GPWII-PII-
250 |
GPWII-PII-
320 |
GPWII-PII-
400 |
|
Power Rating (kVA/ kW) |
250/200 |
320/256 |
400/320 |
|
No Of Phases |
3 |
3 |
3 |
|
Voltage Range (Volts) |
415 |
415 |
415 |
|
Current in Amps (0.8 PF) |
347.8 |
445.2 |
556.5 |
|
Engine Power (BHP) |
309 |
386 |
604 |
|
Fuel Consumption at 100 % Load (LPH) |
56.40 |
76.50 |
86.80 |
|
Fuel Consumption at 75 % Load (LPH) |
42.30 |
57.70 |
64.90 |
|
Dimension LxWxH (mm) |
4500 x 1800 x 2200 |
5000 x 2000 x 2220 |
5600 x 2000 x 2300 |
|
Integral Fuel tank capacity (Ltrs) |
440 |
850 |
990 |
|
DG Dry Weight (kg |
4050 |
4300 |
5490 |

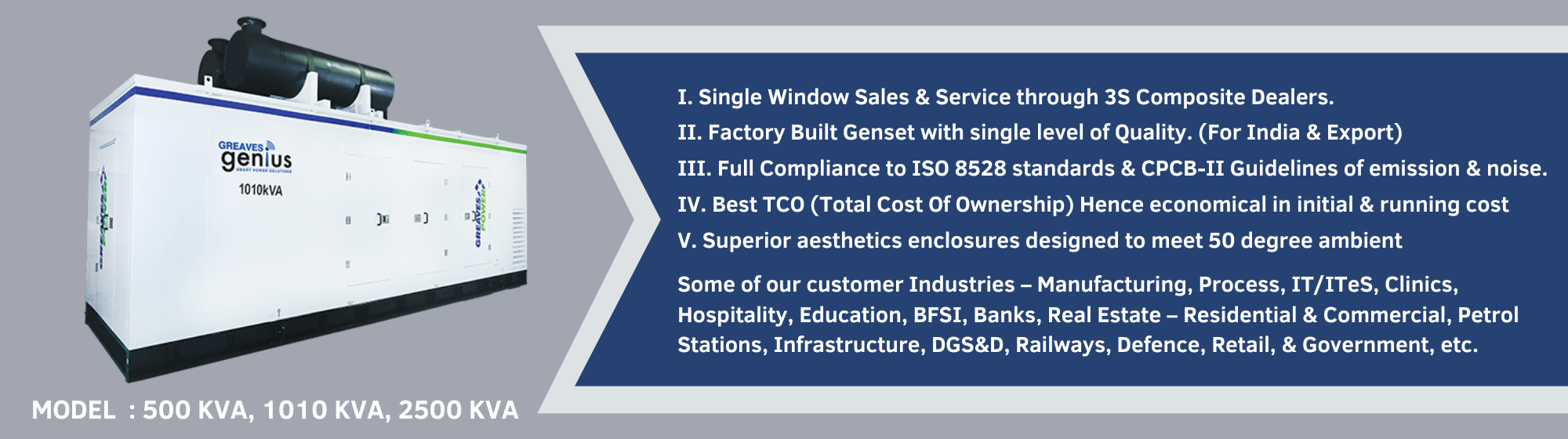

DIESEL GENERATOR 500KVA, 1010KVA, 2500KVA
TECHNICAL SPECIFICATION DIESEL GENERATOR 500KVA, 1010KVA, 2500KVA
|
Genset Model |
GPWII-500 |
GPW-1010 |
GPW-1500 |
|
Power Rating (kVA/ kW) |
500/400 |
1010/808 |
1500/1200 |
|
No Of Phases |
3 |
1 / 3 |
|
|
Voltage Range (Volts) |
415 |
380-440
V |
380-440
V |
|
Current in Amps (0.8 PF) |
695.6 |
1406 |
2085 |
|
Engine Power (BHP) |
604 |
|
|
|
Fuel Consumption at 100 % Load (LPH) |
107.90 |
193.7 |
296 |
|
Fuel Consumption at 75 % Load (LPH) |
82.50 |
146.34 |
215 |
|
Dimension LxWxH (mm) |
5600 x 2000 x 2300 |
7400 x 2416 x 3913 |
8000 x 2300 x 4000 |
|
Integral Fuel tank capacity (Ltrs) |
990 |
990 |
990 |
|
DG Dry Weight (kg |
5610 |
10500 |
12000 |
